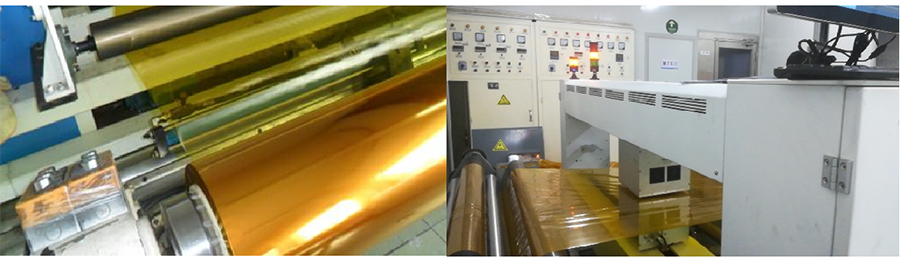

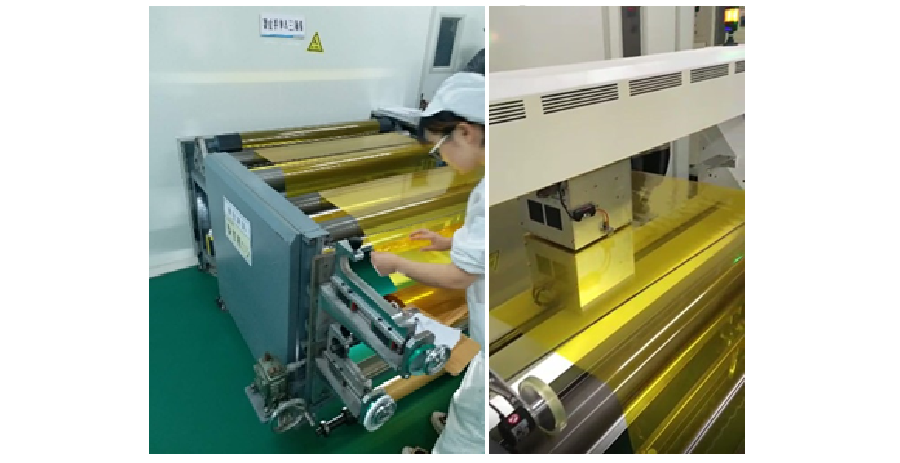

Online Areal Density/Thickness Uniformity Measurement for Polyimide (PI) Films
Measurement Solution: Reechi Ultra-Soft Low-Energy X-ray Online Thickness Gauge
Application:
Online areal density and thickness uniformity measurement for polyimide (PI) films.
Material & Specifications:Material: Polyimide film、Thickness range: 5–100 μm
Measurement Technology:Ultra-soft low-energy 5 keV X-ray emitter、German-designed preamplifier circuits and detector technology、Ultra-high signal-to-noise ratio and repeatability precision、Optimized for ultrathin materials or coatings.
Technical Parameters:
Measurement Range: 0–200 g/m² or 0–200 μm
Repeatability: ±0.08 g/m² or ±0.08 μm
Measurement Modes: Scanning, fixed-point, cyclic fixed-point, and full-coverage measurement.
Functional Modules:Real-time monitoring & quality data visualization、Multi-threshold quality control、Full-value high-capacity data storage, traceability, and historical curve replay、Automated SPC analysis、Automated quality report generation、MES integration、Closed-loop control
